5XFZ-25SC Air-screen Cleaner with Gravity Table

5XFZ-25SC Air-screen Cleaner with Gravity Table

Application:All kinds of grain and seeds cleaning

Capacity:10ton per hour as required

  Description

  The wintone grain cleaning machine is capable of processing all types of crop: Wheat, Durum, Corn, Soybeans, lentils, Sunflower, Hemp, Lucerne, Poppy, Oats, Chia, Barley, Maize, Peas, Beans, you name it.

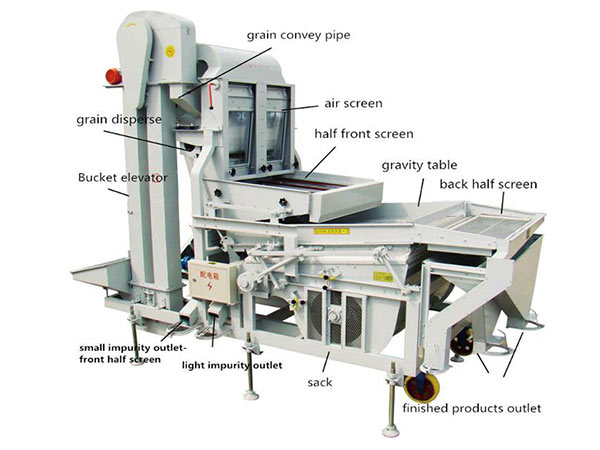

  5XFZ-25S Series air screen cleanerIt has gravity separator ( with front semi-sieve).We install the semi-sieve in front of the gravity table to remove the small impurity from the material after the wind selection, which can reduce the workload of the gravity table and protect the it from being blocked. It can remove all the dust, bran shell, blighted seeds, budding seeds, damaged seeds (by insects), moldy grain, straw etc from commodity grain and seeds.

  Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels. The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.

grain cleaning machine

FEATURE

  • Multi-function

    Integrate wind screen, specific gravity selection and screening; Complete wind selection, gravity selection, screening and grading, which can save energy and reduce consumption and labor.

  • High clarity

    Effectively remove more than 90% of lighter impurities such as spoiled seeds, buds, moth-eaten grains, mildew grains, smut grains, etc.;

  • Advanced Process Technology

    Full laser numerical control technology, sandblasting and plastic spraying surface treatment.

  • Environmental and safe

    Environmental cyclone duster system and without a lot of dust leakage.

EQUIPMENT DISPLAY

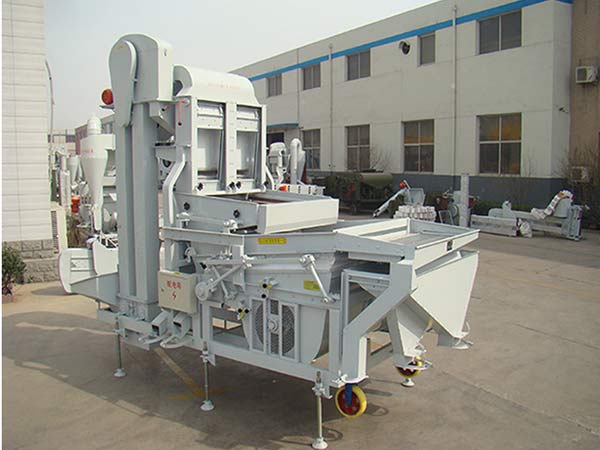

  • 5XFZ-25SC Air-screen Cleaner with Gravity Table
  • 5XFZ-25SC Air-screen Cleaner with Gravity Table
  • 5XFZ-25SC Air-screen Cleaner with Gravity Table

TECHNICAL INDEX



Name

Model

Sieve size(mm)

Power

Kw

capacity(T/h)

Weight

Kg

Overall size

LxWXH mm

Gravity

Sieve size

Based on wheat

compound

cleaner

5XFZ-25SC

1700x1600

1250x1200

12.5

10

2150

3830x2400x3740
